Ford Mustang (1999-2004) Service Manual: Typical Vehicle Emission Control Information (VECI) Decal

Typical Vehicle Emission Control Information (VECI) Decal



Typical Vehicle Emission Control Information (VECI) Decal

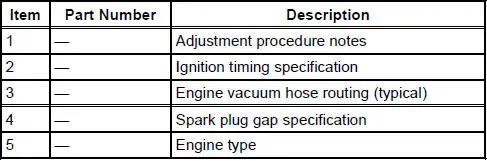

The Vehicle Emission Control Information (VECI) decal shows:

  • the components of the emission control system.
  • the correct vacuum hose routing.
  • the color stripe of the vacuum hoses.

The PCV system uses the intake manifold vacuum to ventilate the crankcase and return the fumes to the intake manifold for combustion.

    Engine Emission Control (Description and Operation)
    CAUTION: Do not remove any part of the engine emission control system. Operating the engine without the engine emission control system will reduce fuel economy and engine ventilation. This will weak ...

    EGR System Components
      The EGR system returns a portion of the exhaust gas to the intake manifold to reduce the combustion temperature. This results in lower nitrous oxide formation. The powertrain control modul ...
