Ford Mustang (1999-2004) Service Manual: Fuel Tank and Lines

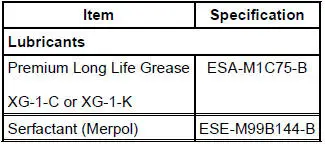

General Specifications

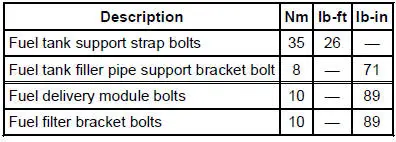

Torque Specifications
- Fuel Tank And Lines (Description and Operation)
- Fuel Tank
- Support Straps
- Fuel Pump Module
- Fuel Tank Filler Pipe
- Fuel Filter
Fittings - Vapor Tube
Disconnect
1. WARNING: The evaporative emission system contains fuel vapor and
condensed
fuel vapor. Although not present in large quantities, it still presents the
danger of
explosion or fire. Disc ...
Fuel Tank And Lines (Description and Operation)
WARNING: Do not smoke, carry lighted tobacco or an open flame of any
type when
working on or near any fuel-related component. Highly flammable mixtures are
always present
and may be ignited, possibl ...
Other materials:
Fuel Vapor Control Tube Assembly Valve
Removal and Installation
1. Remove the fuel tank. For additional information, refer to
Section.
2. Remove the retainers.
3. NOTE: The fuel vapor vent valve, fuel vapor control valve and the
in-line fuel tank pressure
sensor are repaired as a fuel va ...
Refrigerant Lines
The condenser to evaporator tube (19835) contains the high pressure liquid
refrigerant upstream of the
evaporator core orifice.
The A/C manifold and tube (19D734) is attached to the A/C compressor, is sealed
with O-ring seals,
and has the following features ...
Inspection and Verification
1. Verify the customer concern is with the evaporative emission (EVAP)
system.
2. Visually inspect for the following obvious signs of mechanical damage.
Visual Inspection Chart
Mechanical
Fuel filler cap
EVAP test port
...
